- Systems: Static dissipative and conductive ESD epoxy — Sherwin-Williams Resuflor SCT, PIP InhibiStat and InhibiSpark systems, Sikafloor ESD series
- Compliance:
- – ANSI/ESD S20.20 program standard
- – STM7.1 resistance testing
- – STM97.1 system resistance + STM97.2 body voltage testing
- Resistance bands: Conductive below 1.0 × 106 ohms; static dissipative 1.0 × 106 to 1.0 × 109 ohms
- Failure diagnosis: Ground-path verification, strap tie-in checks, zone-by-zone STM7.1 resistance mapping, re-certification after remediation
- Cure-and-test window: 24 to 72 hours from final coat to resistance testing
- Pricing: $3.34-13.55/sqft installed depending on system type, thickness, and substrate condition
- Coverage: In-house W-2 crews mobilize nationwide — installing industrial flooring since 1999
Phone: +1 (844) 687-1961
Most ESD flooring problems found at a program audit are install failures, not product failures. A floor that reads out of spec on an ANSI/ESD STM7.1 resistance test usually failed months earlier, on the day a conductive primer was thinned out of ratio, a ground strap was left untied to building steel, or a crew packed up before the 24-72 hour cure-and-test window closed. The fault almost always sits in the ground path. This page catalogs the common ESD flooring mistakes behind failed floors and missed audits: grounding errors invisible to visual inspection, specifications that never name a resistance band, anti-static product installed where a groundable floor was required, and testing gaps that let drift run unnoticed until the audit.
Craftsman Concrete Floors has installed and re-certified ESD flooring since 1999, including remediation of floors that failed their first audit under another installer. The pattern repeats across facilities and verticals. In-house W-2 crews mobilize nationwide, and the diagnostic sequence is the same on every ESD floor troubleshooting call. Verify the ground path before condemning the coating. The rest of the ESD flooring hub covers system selection and installation; this page stays on the failure modes and the practices that prevent them.
Our Clients
Grounding Mistakes Behind Failed ESD Floors
The number one ESD flooring failure is grounding. A dissipative epoxy only performs to its data-sheet band when charge has a continuous path from the surface, through a conductive primer or ground plane, through straps, to building steel. Break that path anywhere and the floor reads out of spec on an STM7.1 test no matter how well the topcoat went down. Three common ESD grounding mistakes account for most of the failed floors Craftsman is called to diagnose.
Conductive Primer Thinned Out of Spec
A conductive or ground-plane primer is the electrical layer of the system, and the topcoat’s rated resistance assumes it is present at full coverage. Thin the primer to stretch material, or skip it over concrete judged clean enough, and the STM7.1 probe reads the substrate instead of the data-sheet band. The failure is invisible at walkthrough. It surfaces months later as high readings across whole zones during a program audit. Prevention is wet-film gauge checks during primer application, with coverage rates held to the manufacturer TDS and documented before the topcoat goes down.
Ground Straps That Never Reach Building Steel
Copper ground straps carry charge from the conductive layer to a verified earth ground, and building steel is the standard tie-in point. A strap that was never terminated, or one tied to a painted surface with no continuity, is a break no visual inspection catches. The floor looks finished. It fails the first time someone runs an STM97.1 system-resistance probe, because the path from person through floor to ground never closes. Correct practice is strap layout per the system design and a documented continuity check to bare building steel, recorded in the closeout package.
Leaving the Site Before Certification
Resistance verification comes 24 to 72 hours after the final coat, because resin has to cure before STM7.1 readings are reliable. On compressed schedules the crew is often gone by then, and the test gets waived or handed to a facility electrician with a multimeter and no test method. Either way the floor was never certified. When the S20.20 audit arrives eighteen months later, there is no baseline resistance log to defend the install. The fix is a scheduled return inside the cure window, with STM7.1 readings recorded point by point and delivered as closeout documentation.

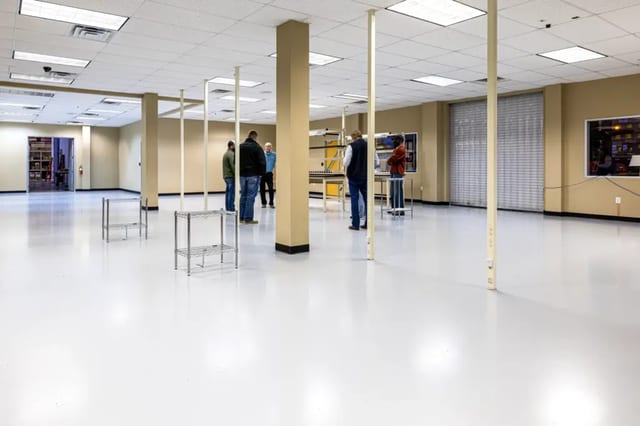

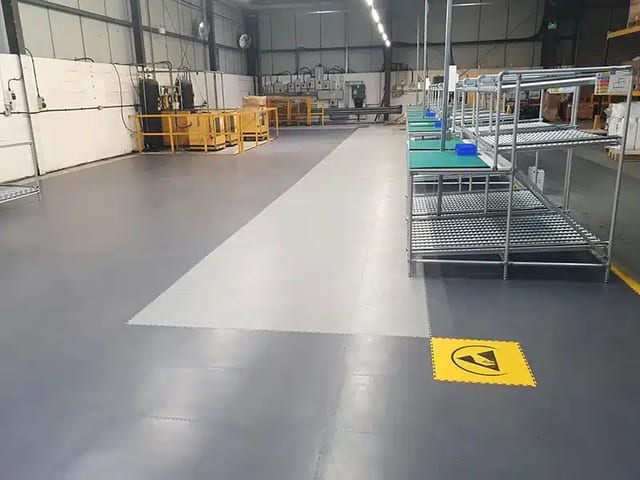

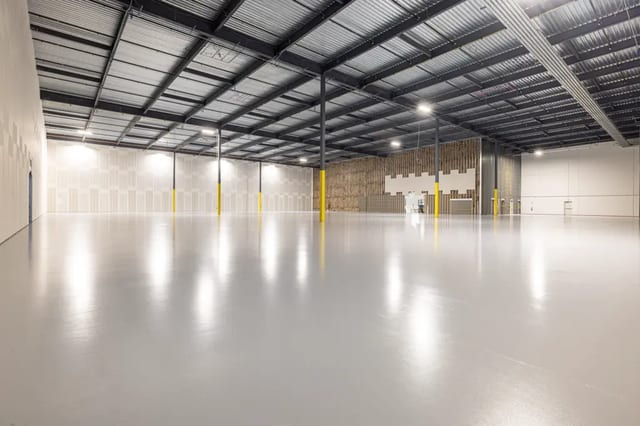

ESD Flooring Gallery
Request a Proposal
Submit project parameters for preliminary analysis. Commercial estimates typically returned within 24 hours.
Specification and Class-Selection Mistakes
An ESD flooring installation mistake happens on site. A specification mistake happens earlier, written into the drawing before a crew ever mobilizes. The resistance class is the load-bearing decision: conductive below 1.0×10⁶ ohms or static dissipative at 1.0×10⁶ to 1.0×10⁹ ohms. A spec that skips the class, or picks the wrong one for the hazard, produces a floor that passes installation and still fails the program when the compliance auditor runs a probe.
A Spec That Never Names the Resistance Band
‘ESD flooring’ on a drawing, with no ohm range and no test method, is an incomplete specification. The installer picks a system and the facility inherits whatever band it carries; the ESD program manager discovers the mismatch when the program document calls for one class and the floor measures another. Every ESD floor spec should state the band and the verification method in the same line, for example static dissipative at 1.0×10⁶ to 1.0×10⁹ ohms per STM7.1. Class selection is covered in depth on our conductive vs dissipative page.
Anti-Static Where the Program Needed a Ground Path
Anti-static product typically measures 10¹⁰ to 10¹² ohms. It suppresses triboelectric charging from foot traffic but provides no controlled path to drain a charge that already exists, which is what an ANSI/ESD S20.20 program actually verifies. Facilities buy it because the label sounds right and the price runs lower. Then the STM97.2 walking test measures body voltage well above the 100V program threshold, and the floor gets recoated with a groundable dissipative system over a conductive primer. The label on the pail does not settle which class the program requires.
The Wrong Class for the Hazard
Dissipative flooring at 1.0×10⁶ to 1.0×10⁹ ohms is the standard choice for electronics manufacturing and data centers, and specifying it there is usually correct. That choice inverts in munitions handling, propellant work, and other flammable or explosive atmospheres, which require the conductive band below 1.0×10⁶ ohms because charge has to reach ground faster than an ignition event can develop. A dissipative floor in a Class I Division 2 area can pass its own data sheet and still leave the facility out of compliance. Hazard class drives resistance class, and that call belongs in the spec before bidding starts.
Testing and Verification Mistakes
An ESD floor is certified by measurement, and the measurement itself can be the mistake. Readings taken too early, and readings never repeated, leave a facility believing something about its floor that an auditor’s probe will contradict. Most failed floors get diagnosed at the ground path, and once the fault is located the fix is usually procedural.
Testing on Uncured Resin
Epoxy resistance changes as it cures, so a reading taken hours after the final coat reflects an unfinished floor whose numbers will still move. Certification testing inside the cure window produces numbers that drift once cure completes, in either direction. The window is 24 to 72 hours from final coat, per the manufacturer’s system data. Test earlier and the log is unreliable; an auditor who checks test dates against the install schedule will treat it that way. Hold verification until the window closes, then record STM7.1 readings on the cured system.
Drift Nobody Catches Until the Audit
Resistance is not static over a floor’s service life. Wear paths and cleaning chemistry both move readings, and a floor that certified at install can drift toward the band edge without any visible change. Facilities that skip periodic re-verification find out at the 18-month program audit, when the finding is already written. ANSI/ESD S20.20 programs expect scheduled compliance testing well beyond a single install-day log. Our testing programs page covers verification intervals; the maintenance page covers the cleaning practices that protect readings between tests.
Troubleshooting ESD Flooring Problems in the Wrong Order
When a floor fails a resistance test, the reflex is to condemn the coating. Start at the ground path instead. Verify strap tie-ins to building steel, then primer continuity, then take STM7.1 floor readings zone by zone before moving to STM97.1 system resistance and the STM97.2 body-voltage walking test. Run the sequence in that order and most failed ESD floors come back as recoverable grounding faults once tie-ins are re-established. Craftsman runs this diagnostic on floors we did not install; the installer page covers remediation and re-certification when the original contractor is gone.
ESD Flooring Knowledge Center
Resource links
Project Delivery Framework
Facility-Specific Requirements
Compliance & Testing Standards
Capabilities
ESD Systems & Selection
Installation & Maintenance
Frequently Asked Questions
Grounding failures top the list — conductive primer thinned out of spec and ground straps that never reach building steel, both invisible to visual inspection. Floors that were never resistance-tested at all are the third pattern; the crew leaves before the 24-72 hour cure window closes and certification never happens. Most floors flagged at a program audit trace back to one of these install-day gaps.
The ground path is the usual culprit. An STM7.1 probe measures the full path from the floor surface to ground — if the conductive primer was thinned or the ground straps never reached building steel, the reading reflects the substrate rather than the data-sheet band. Readings taken on uncured resin are also unreliable; resin needs 24 to 72 hours after the final coat before certification testing produces valid numbers.
Often, yes. A floor failing STM7.1 over a broken ground path can frequently be recovered by re-establishing strap tie-ins to building steel and re-certifying, without touching the coating. Where the conductive primer was thinned or skipped, remediation means recoating affected zones over a correct ground plane; full tear-out is reserved for floors installed in the wrong resistance class for the hazard.
Anti-static flooring typically measures 10¹⁰ to 10¹² ohms and resists triboelectric charging, but it has no controlled path to bleed a charge that already exists. Static dissipative flooring measures 1.0×10⁶ to 1.0×10⁹ ohms and, grounded through a conductive primer tied to building steel, drains charge continuously. An ANSI/ESD S20.20 program requires the groundable floor, and substituting anti-static product for it is one of the most common specification mistakes.
ANSI/ESD STM7.1 measures floor-material resistance. STM97.1 adds footwear and a person to measure system resistance, and STM97.2 measures body voltage generation during a walking test against the program threshold of under 100V. Running the three in sequence isolates whether the fault is in the coating, the ground path, or the footwear pairing; Craftsman delivers the readings as a closeout package, and full method definitions are on our compliance standards page.
Usually, yes. Remediation of a failed floor often costs less than a replacement estimate suggests; re-grounding and re-certifying runs a fraction of a tear-out. Full replacement, when the fault is unrecoverable, runs $3.34-13.55/sqft installed depending on system type, thickness, and substrate condition, derived from real bid data on 250+ commercial ESD projects.
Yes, nationwide. In-house W-2 crews mobilize to project sites across the United States, and Craftsman has installed industrial flooring since 1999. Troubleshooting and re-certification of failing ESD floors, including floors originally installed by other contractors, runs on the same coverage.
